High-performance drilling mud additives Plant Gum Viscosity Increaser SZWJ Environmentally friendly drilling chemicals

1.Product Overview

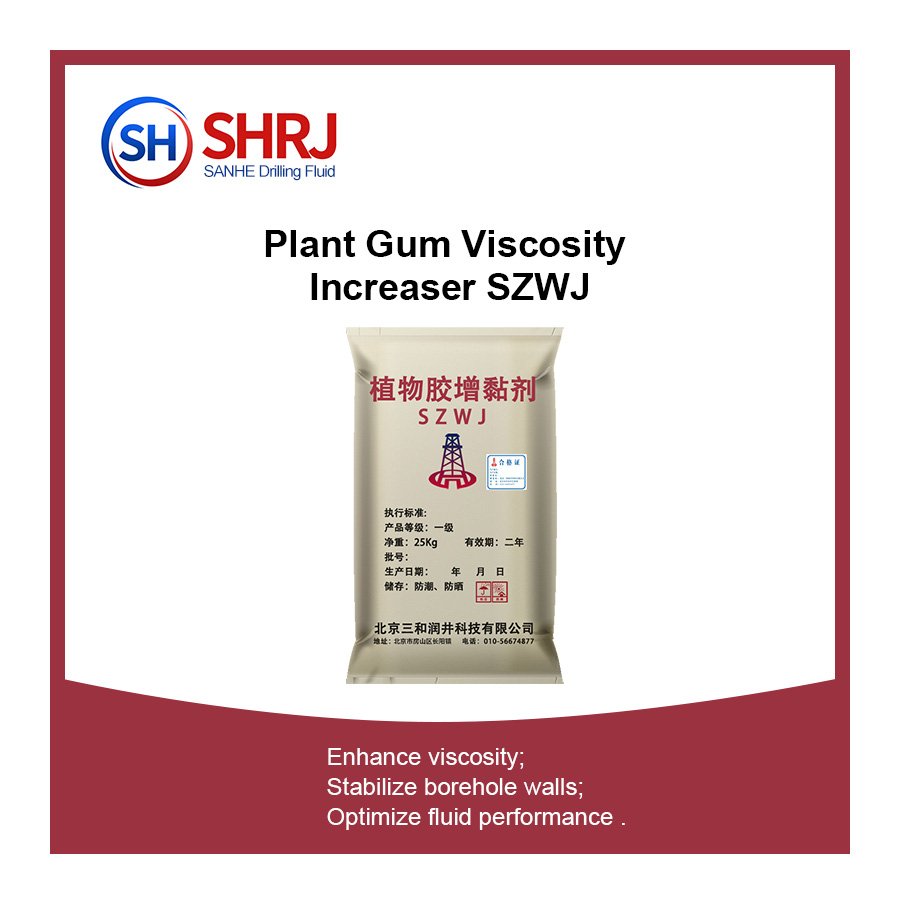

‌Product Name‌: Plant Gum Viscosity Increaser SZWJ
‌Application‌: A high-performance additive for drilling fluids, designed to enhance viscosity, stabilize borehole walls, and optimize fluid performance in complex geological conditions. Compatible with composite additives (e.g., SLBM) and modified asphalts (e.g., GLA) for synergistic effects‌.

2.Functions and Characteristics

Product Features & Advantages‌

（1）High Viscosity Enhancement‌: Rapidly increases fluid shear resistance and thickness, suitable for high-pressure drilling environments‌.

（2）‌Wall Stabilization‌: Forms a protective film to prevent collapse in loose/fractured formations‌.

（3）‌Eco-Friendly Formula‌: Reduces environmental impact while maintaining compliance with industrial standards‌.

（4）‌Temperature Resistance‌: Maintains stability in deep drilling (e.g., dry hot rock exploration)‌.

（5）Customizable Solutions‌: Adaptable to client-specific requirements (e.g., metal ore drilling)‌.

‌3. Core Functions‌

• ‌Viscosity Control‌: Adjusts rheological properties for efficient cuttings transport‌1.
• ‌Borehole Protection‌: Minimizes fluid loss and mitigates wall spalling‌.
• ‌Environmental Safety‌: Biodegradable components reduce ecological risks‌.
• ‌Compatibility‌: Works seamlessly withPlugging agent (GPC), plugging agents (SFD-1), and weighting agents (e.g., barite)‌.

‌4. Application Solutions (For reference only）

（1）Standard Drilling Fluid Formula .  (For reference only）‌‌

• ‌Base Fluid‌: 1 m³ freshwater + 30–50 kg SLBM composite agent‌.
• ‌Enhancement‌: Add 10–20 kg SZWJ + 10–20 kg GLA modified asphalt‌.
• ‌Performance‌: Achieves viscosity >45 s (measured by 1006-type viscometer)‌, filtration <8 mL/30 min‌.

‌（2） Deep Well Optimization‌

• ‌Additives‌: Increase SZWJ dosage to 25–30 kg/m³ for enhanced thermal stability‌.
• ‌Procedure‌:

1. Premix SZWJ with SLBM in freshwater for 20–30 min‌.
2. Add GLA/GPC gradually under agitation‌.
3. Test viscosity using 1006-type viscometer‌4 and adjust density with barite‌.

‌（3）Troubleshooting‌

• ‌Permeable Zones‌: Combine SZWJ with SFD-1plugging agents to reduce fluid loss‌1.
• ‌Fractured Formations‌: Integrate GPCAnti collapse drilling plugging agent for immediate sealing‌.

NOTE:The actual dosage may vary depending on the specific drilling conditions and environmental factors ‌.Optimal dosage should be determined based on specific well conditions and drilling parameter

‌5.Packaging & Storage‌‌

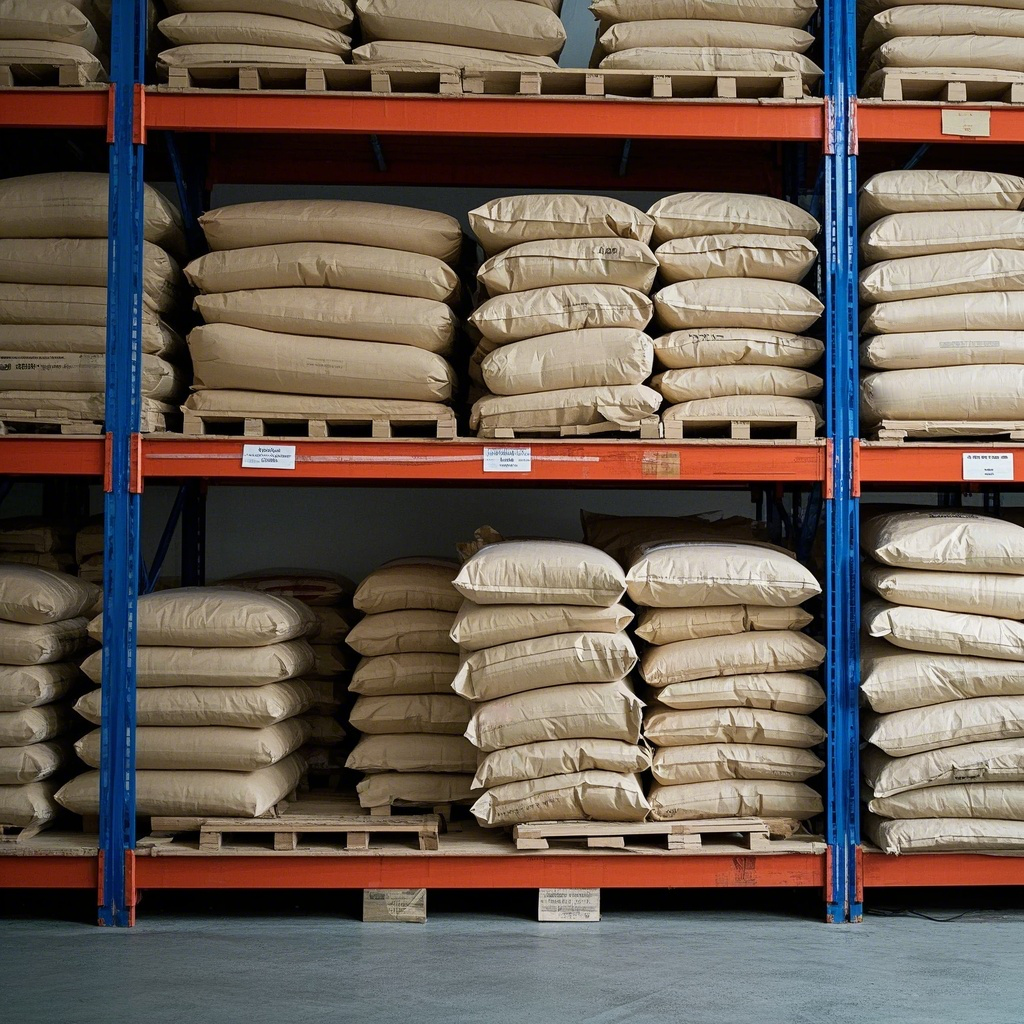

‌Packaging‌: 25 kg triple-layer kraft bags

‌Storage Conditions‌:

Keep dry and protect from direct sunlight and moisture.

Temperature: 10–30°C (avoid thermal cycling).

Humidity: ≤65% RH (critical for anti-caking).

Ventilation: Well-ventilated area, isolated from oxidizers.

‌Validity Period‌: 24 months from production date (see batch code for details).

6.Additional Details：‌

‌Versatile Application‌: The product adaptability allows it to be tailored for different drilling scenarios, ensuring optimal performance and cost-effectiveness.

‌Disclaimer‌: The above information is provided for reference only. Actual performance may vary based on specific drilling conditions and operational practices. Please consult with technical experts for detailed application guidance.
